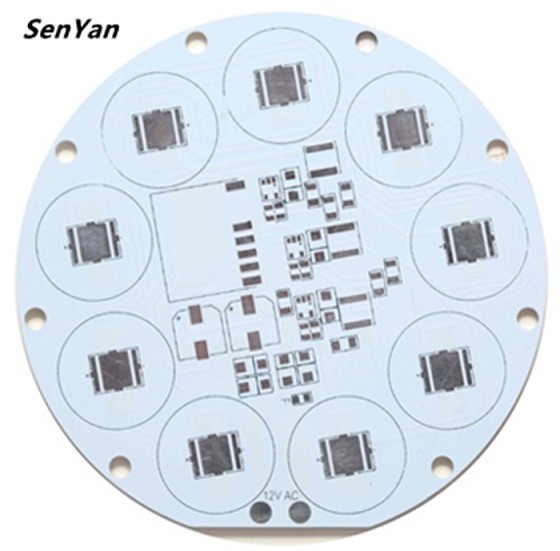

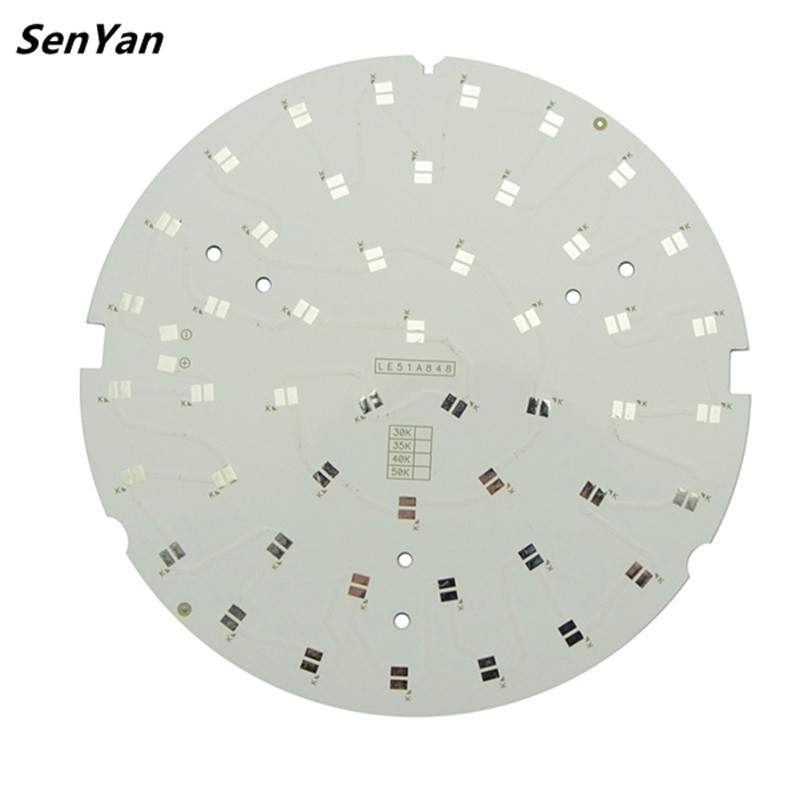

Copper substrate PCB

Copper substrate PCB

Copper substrate  PCB
Copper substrate  PCBCopper substrate  PCBCopper substrate  PCB
CategoriesAluminum PCB
AlbumView larger image
Materialaluminum
Board Thickness1.6mm
Copper Thickness35um
Min Holes0.3mm
Solder maskWhite
Silkscreen ColorBLACK
Surface TechnicsHASL
Update Time2019-10-20
Detail Information
SENYAN PCB offers full-service printed circuit board manufacturing with two easy options:  Standard & Custom Spec. All files receive a full CAM review and all boards are inspected to IPC-A600 Class 2 or higher standards.  Choosing between our two options will depend on your PCB design requirements and specifications.  Compare price & turn-times by getting an Instant Quote.
 PCB Production Capability
Item(pcb board)
Capability (pcb board)
Base Material
FR-4 / High TG FR-4 / Halogen Free material/Rogers/Arlon/Taconic/Teflon
Layers
1-12 LAYERS
Finised inner/outer copper thickness
1-6OZ
Finished board thickness
0.2-7.0mm
Min hole size
0.2mm
Controlled Impedance
+/-5%
Plugging vias capability
0.2-0.8mm
Outline profile
Rout/ V-cut/ Bridge/ Stamp hole
Surface treatment
HASL, HASL lead free, Immersion Gold, Immersion Tin, Immersion Silver, Hard gold, Flash gold, OSP…
Product Display
